VYL550 2000m Cable Maintenance ROV with 2* 7 Axis Hydraulic Manipulator

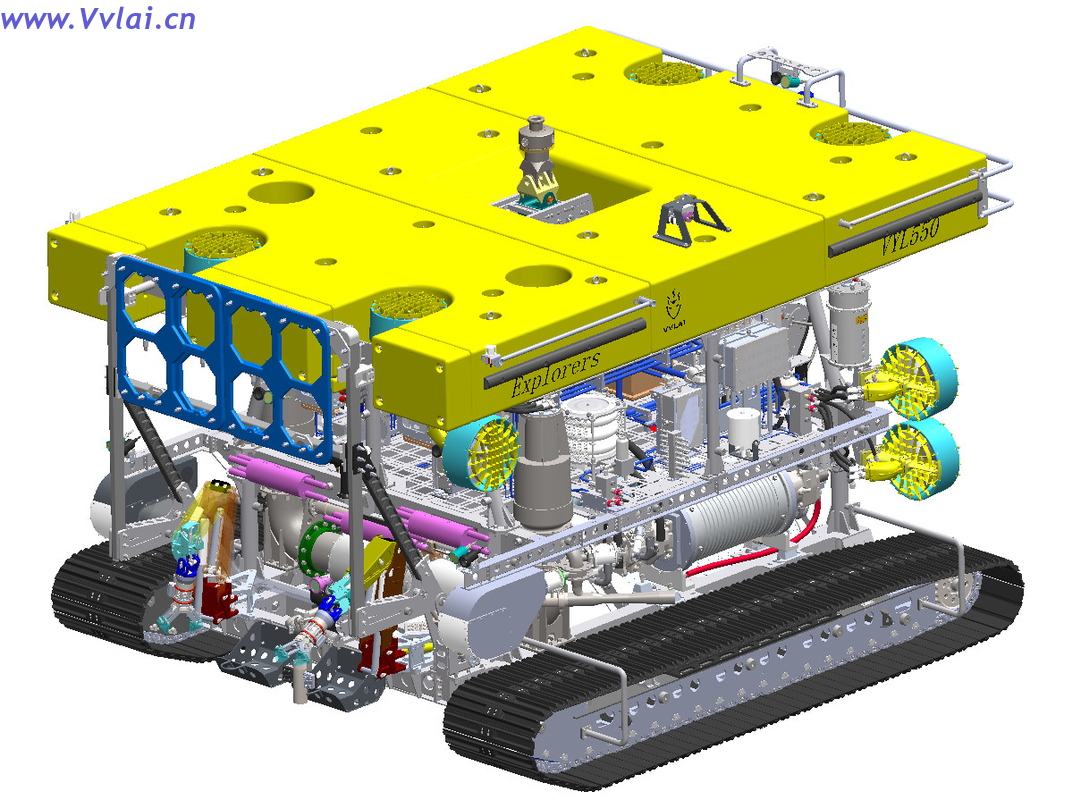

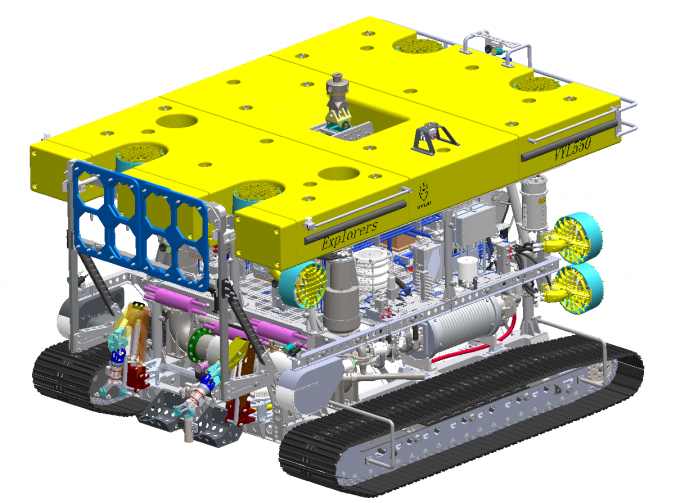

Large Image : VYL550 2000m Cable Maintenance ROV with 2* 7 Axis Hydraulic Manipulator

Product Details:

Place of Origin:	Weihai,China
Brand Name:	VVLAI
Certification:	ISO9001,RS
Model Number:	VYL550

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Container,Wooden case,etc
Delivery Time:	6-8months
Payment Terms:	T/T
Supply Ability:	50 Sets per year

Description

Depth Rating:	2000m	Manipulator:	2* 7 Axis Hydraulic Manipulator
Application:	Suitable For Deep Sea Optical Cable, Cable, Pipeline Construction And Other Operations, It Is The First Intelligent Operation Equipment With High Water Depth And Strong Current Resistance In China. It Has Intelligent Technologies Such As Underwater Walking	Power:	440KW/580hp
Size:	5400mm4500mm3300mm	Weight In Air:	13.5ton（Track/Skid）
Weight In Water:	2ton	Between Jetting Legs:	100-500mm
Trenching Depth:	0-3m	Trenching:	0-2km/h
Water Pump:	2*170KW	Jet Power:	340KW
Jet Pressure:	5bar,2*1000m3/h	7 Function Manipulator:	2*7 Function Manipulator
Armored Cable Cutting:	100mm	Flexible Cable Cutting:	100mm
Cable Clamp:	100mm

2000m Cable Maintenance ROV

1.Robot introduction

"EXPLORERS VYL550" Cable Maintenance ROV is an intelligent equipment for deep-sea submarine optical cable, cable and pipeline construction that Shandong Future Robot Co., Ltd. focuses on developing. The equipment has the domestic first intelligent operation in deep water, strong anti current ability, underwater walking, suspension maneuverability , precise navigation and positioning, cable detection, cable tracking, cable laying and other intelligent technologies, and is mainly applicable to seabed sand Soft soil and other geological environment operations.

VYL550 2000m Cable Maintenance ROV with 2* 7 Axis Hydraulic Manipulator
