VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms

VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms

Product Details:

Place of Origin:Weihai,China
Brand Name:VVLAI
Certification:ISO9001,RS
Model Number:Explorers VY250

Payment & Shipping Terms:

Minimum Order Quantity:1 Set
Packaging Details:Container,Wooden case,etc
Delivery Time:6-8months
Payment Terms:T/T
Supply Ability:50 Sets per year
Description
Depth Rating: 6000m Power: 185KW/250hp
Size: 3650mm*2100mm*2300mm Weight In Air: 5300kg
Payload: 420kg Bollard Pull For Forward-backward/lateral: 1150kg/900kg
Bollard Pull For Vertical Upward / Downward: 1020kg/1130kg Speed Forward: 1.7m/s
Speed Lateral: 1.1m/s

6000m Heavy-duty Work Class ROV
1.Overview
VY250 robot is a 6000m class operating robot with 185KW power, equipped with a set of five-axis and seven-axis hydraulic robotic arms, and all core components are localized. It is mainly used in deep-sea oil and gas field operation, wind power and communication cable maintenance, underwater search and rescue, and other fields.

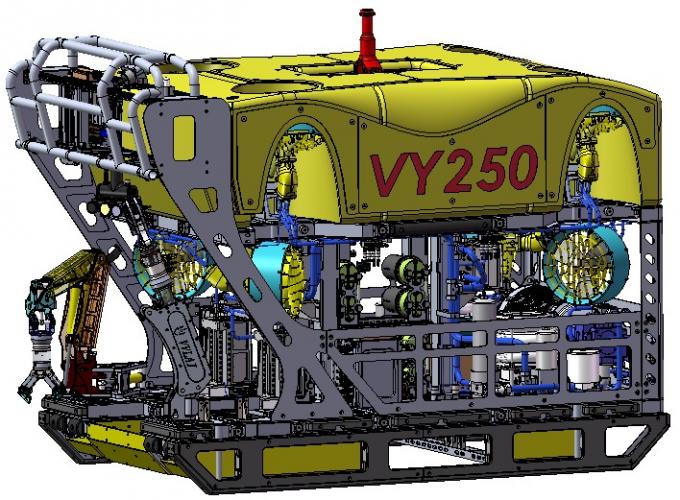

VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms

VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms


VY250 is independently developed and manufactured by our company, with 100% localization rate. It is the first breakthrough in deep-sea operational-grade ROV with high pressure resistance, navigation and positioning, power, communication transmission and multi-equipment cooperative operation technology, and is equipped with self-developed TMS to realize large water depth operation. It is suitable for deep-sea resource exploration, submarine cable/pipeline laying,  etc.
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
2.Specification


Technical parameters
General
Power185Kw/250Hp
ROV depth rating                                   6000m
Depth rating Buoyancy6000m
Size(L×B×H)3,65m×2.1m×2.3m
Weight5300kg
Payload420kg
Thrusters7×THR.Y300
MECHANICAL CAPACITY AND INTERFACES
Free space inside ROV for utility equipmentOpen area of approx. 200 L through the entire ROV, right in front of centre of gravity.
Manipulators5 axis manipulator,7 axis manipulator(Switch control)
HYDRAULIC CAPACITY AND INTERFACES
Valve Pack No.110x Bi-directional Valves with proportional flow control, each with max flow 5 L/min.
Valve Pack No.210x Bi-directional Valves with proportional flow control, each with max flow 5 L/min.
TELEMETRY/SENSOR CAPACITY AND INTERFACES
Power Distribution

All power supplies allocated to external users, such as lights, cameras and sensors, can be switched on / off from the upper computer with a total available power of 10A @ 220VAC.
Available power supply: 220VAC, 24VDC, others can be provided as required.

Sensor InterfaceCustomizable interface(including sonar,USBL,altimeter,gyro,etc)
CAMERA AND LIGHTS
Camera Interface

8 composite video camera inputs.
Connector type: VVLJXT series

Pan/TiltDouble axis pan tilt *2
Light Interface

Capacity for nine dimmable lights, maximum total load of 1500W.
Connector type: VVLJXT series

PERFORMANCE
Bollard Pull FWD/AFT1150kg
Bollard Pull LATERAL900kg
Bollard Pull Vertical UP1020kg
Bollard Pull Vertical DOWN1130kg
Speed FWD1,7 m/s
Speed LATERAL1.1 m/s
PILOT INTERFACE

• Two identical pilot chairs, where all necessary controls for operating the ROV, TMS and PDU are integrated in the control station.
• 2 off Touch Controller
• 2 off 49” Video monitors
• 6 off 22” Monitors

PDU
DescriptionOne separate cabinets. One containing breakers, contactors, overload relays,signal transformers,and serving as a termination and isolation point for all high voltage connections.
Input3 phase 400-420-440VAC, 50Hz
Output

• ROV HPU 220 KVA, 3000-3150-3300-3450VAC
• ROV Instrument 16 KVA, 3000-3150-3300VAC
• TMS HPU 30 KVA, 3000-3150-3300V-3450VAC
• TMS Instrument 16 KVA, 3000-3150-3300VAC



VD20 TMS
General
Max. Width2450mm
Min. Width2150mm
Height2300mm
Depth rating3000m
SWL liftpoint (LARS interface)12000kg
SWL latch (ROV interface)10000kg
Tether capacity500m,tether diameter≤40mm
Min. Tether Bending Diameter800mm
Weight in air excl. tether2850kg
Weight submerged excl. tether2200kg
Hydraulic FluidTellus S3M22
Power Supply3kV/3ph/50Hz
Total Power17 kW
ELECTRICAL INTERFACE
Capacity for 2x cameras
Capacity for3x dimmable lights

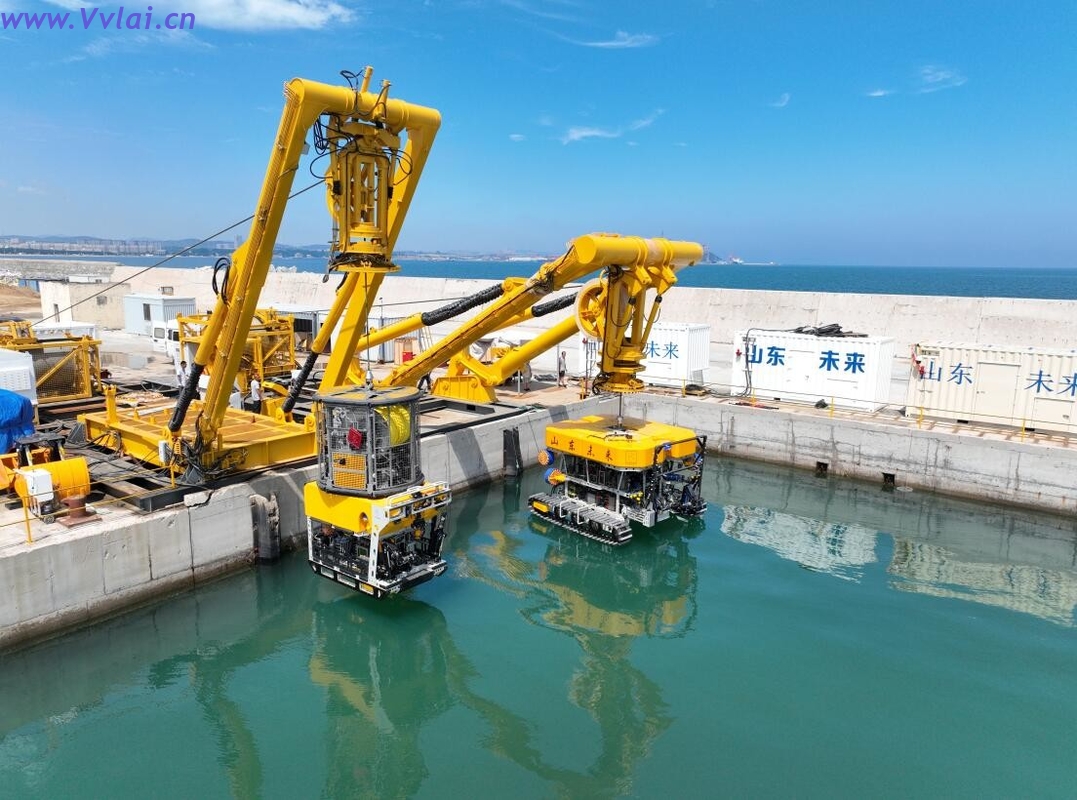

10T LARS Lifting system
A-frame

1. Rated working load: 10T
2. Dynamic load coefficient: 1.7
3. Outboard working distance: ≥ 4100mm
4. Span: ≥ 3m
5. Luffing time: 120s
6. Side sway buffer angle: ± 8 ° (outboard limit position)
7. Net height of guide joint bottom: 6124mm
8. Shock absorber rotation angle: 270 °
9. Shock absorber rotation speed: 0.7r/min

Winch

1. Maximum working load: 150kN
2. Speed and load: 30m/min/100kN
3. Rope capacity: Ф 36.5mm/3300m
4. Braking force: 170kN





VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
VY250 6000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms
