Material: |
UHMW-PE |
Manipulator: |
Can Be Included |
Application: |
Underwater Salvage |
ROV: |
Console,Tether/Cable,Underwater Robot |
Underwater ROV,VVL-V600-4T,400-600M Cable,dams,rivers,lakes,sea,underwater inspection

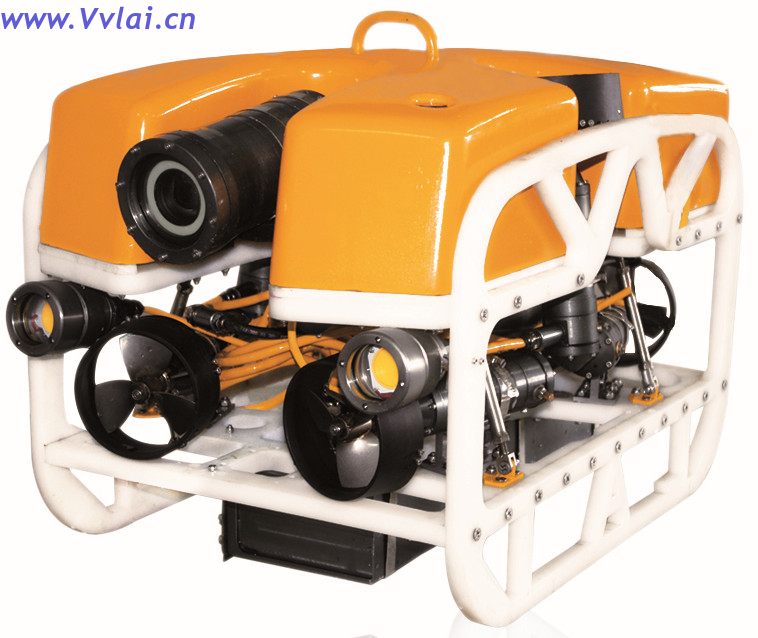

1.Product image:
2.Presention
Underwater ROVs are completely mobile underwater camera systems that are cntrolled from the surface and capable of staying submerged indefinitely.These ROVs are ideally suited to a variety of applications,such as:
Research and education,underwater archaeology,oceanography;
Fish behaviour observation,fishery box inspection,aquaculture;
Offshore oil rog,nuclear power station,tidal power station,offshore wind power station,pipeline inspection;
Port,dockyard,underwater hull inspection;
Commercial diving,sport diving,underwater operation support;
Place where is dangerus for frogman to access,toxic liquid inspection,diving area inspection,diver watch;
Search and rescue in river and sea,dam inspection,underwater construction inspection;
Recreation,underwater creature observation,aquarium;
They can dramatically reduce serch time,as well as the risk and high cost associated with diving operations,equipped with the remote metal detector the ROV becomes a high tech search system capable of locating weapons,unexploded ordnance,pipelines,buried treasure,and other metal objects.

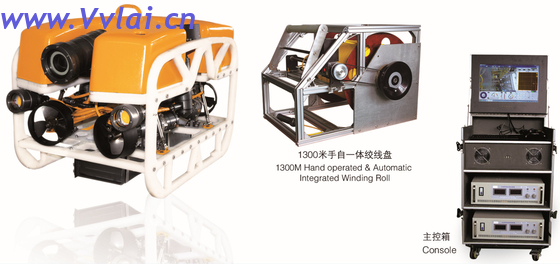

3.Standard configuration:
●Monitor: 19inch high light LCD,host computer control
●Camera: Colour 700tvl HD camera,0.01 Lux,wide focus range,200° rotation vertically
●DVR: 1T
●Tether: 200M neutrally buoyant in water,can bear weight of 200kg,tether diameter is 6mm
●Light: 3*20W LED light
●4 sets of high power speed controllable thrusters,two sets control the robot to move forward,backward,left and right,two sets control the robot to move up and down
●Reel with slip ring
●Surface and underwater compass
●Depth sensor
●GPS
●Material:floating body material
●Diving depth:400m
●Power consumption: 1500W
●Speed:3 knots
●100-240V power supply
● Robot size and weight: 600*450*400mm 40kg
● Console size and weight: 480*380*240mm 15kg

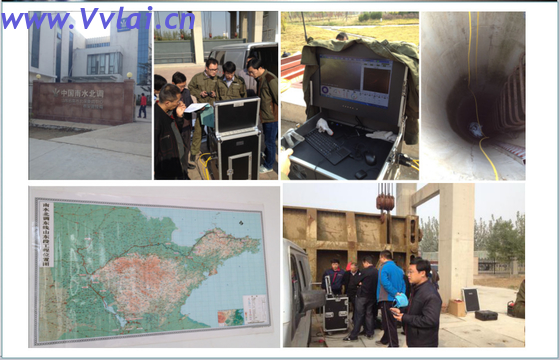

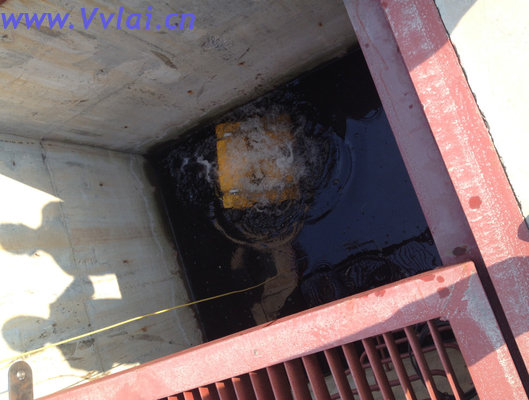

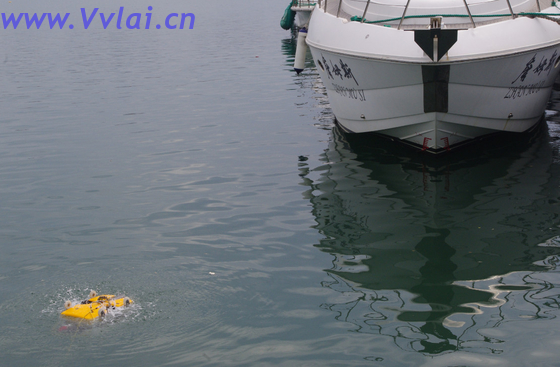

4.Site picture:
5.Company Introduction:
Established in 2005, Shandong Future Robot Co.Ltd is a manufacturer specializes in the design and production of underwater robot. We are located in Weihai with convenient transportation access.All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. After about 10 years’ development and exploration ,we have successfully produced underwater thruster robot,360 degree rotary robot, underwater video camera, suspended robot,underwater walking robot, pipe inspection robot, piepline working robot, underwater panoramic suspension manipulator arm, underwater electric cutting machines and other products, enjoying the reputation and compliment from all over the world.We always adhere to the business philosophy of“pursuit excellencewith Future”, the principle of “trustful quality, gratitude heart, creating Future’ brand”, the spirit of creativity and exploration”, The company has strong R & D strength, high-quality professionals and advanced management mode and we will confront all the challenge and test in the market. Our company promise:Business principle: honesty-based, credit-first, quality-oriented.Service philosophy: punctual delivery, reasonable price, honest attitude.In the new century, we will work hard and closely cooperated with customers to create bright future of Future Robot. Welcome new and old customers to contact us for more detail.
6.Contact info
Shandong Future Robot Co., Ltd.
Add:No.10-3,Futian Road, High-tech Development Zone, Weihai City, China
Tel:86-631-5326187
Fax:86-631-5326187
Skype:liyanghong512
Website: www.vvlai.cn
