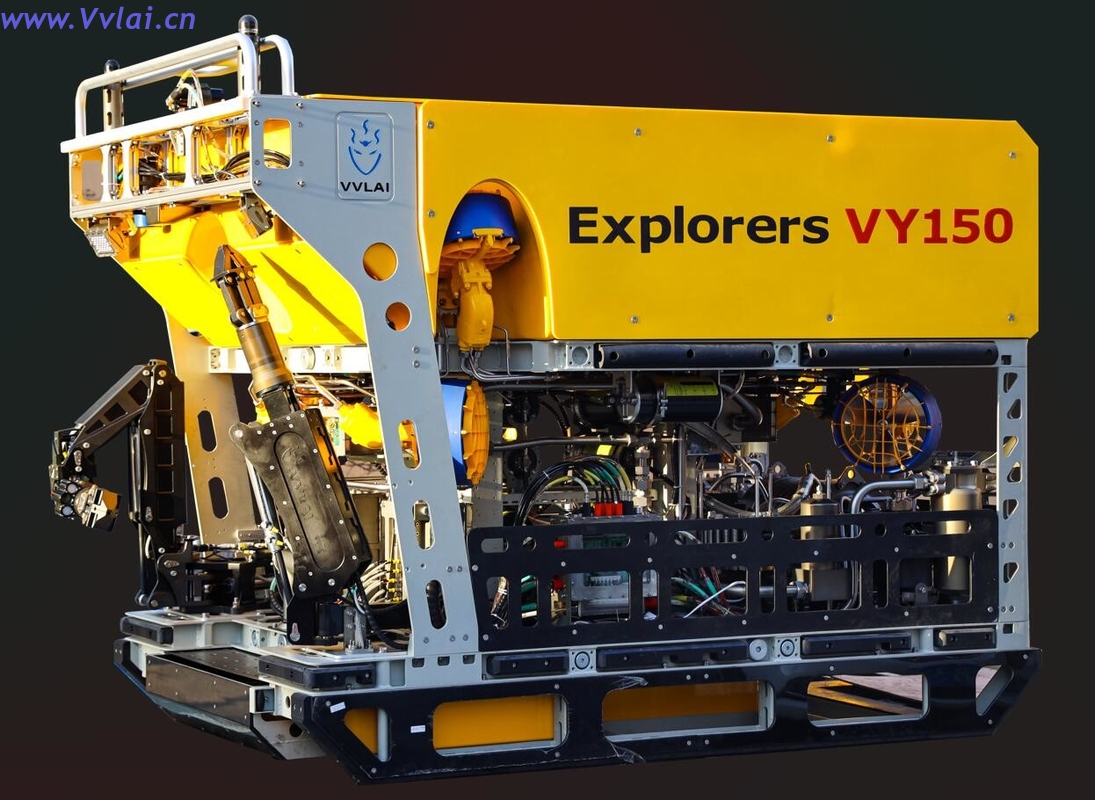

3000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms

Browse Categories: Underwater ROV [61]; Underwater Inspection ROV [28]; Underwater Working ROV [36]; Pipe Inspection or working ROV [12]; Small ROV Series [15]; Video ROV Series [14]; Suspension ROV Series [14]; Track ROV Series [21]; Cutting ROV Series [7]; Big Underwater Salvage and Collection ROV [7]; ROV with Manipulator Arm [24]; ROV with Claw [10]; Old model [12]; ROV Summary [109]; All Underwater ROV [52]; Underwater Camera [45]; Underwater Dredging Robot [0]

Best Products: 3000m Class Underwater ROV with 5-Axis and 7-Axis Hydraulic Arms; Underwater Inspection ROV,VVL-V400-4T,Underwater Robot,Underwater Search,Underwater Inspection,Subsea Inspection; Underwater Multi-function Working ROV,underwater cutting,underwater inspection and salvage VVL-1300A-8T; Underwater Suction Filter Mining Dredge ROV VVL-LD600-4000 for Underwater Mining; Underwater Track ROV VVL-LD260-1800 for Pipeline Dredging,Underwater Salvage

Place of Origin:	Weihai,China
Brand Name:	VVLAI
Certification:	ISO9001,RS
Model Number:	Explorers VY150

Place of Origin:

Weihai,China

Brand Name:

VVLAI

Certification:

ISO9001,RS

Model Number:

Explorers VY150

Minimum Order Quantity:	1 Set
Packaging Details:	Container,Wooden case,etc
Delivery Time:	6-8months
Payment Terms:	T/T
Supply Ability:	50 Sets per year

Minimum Order Quantity:

1 Set

Packaging Details:

Container,Wooden case,etc

Delivery Time:

6-8months

Payment Terms:

T/T

Supply Ability:

50 Sets per year

Depth Rating:	3000m	Cable Length:	3300m Umbilical Cable
TMS:	Included	TMS Cable Length:	500m
Power:	115KW/150hp	Size:	2950mm1900mm1850mm
Weight In Air:	4300kg	Payload:	360kg
Bollard Pull For Forward-backward/lateral:	700kg/600kg	Bollard Pull For Vertical Upward / Downward:	600kg/650kg
Speed Forward:	1.6m/s	Speed Lateral:	1.1m/s

Technical parameters
General
Power	115Kw/150Hp
ROV depth rating	3000m
Depth rating Buoyancy	3000m
Size(L×B×H)	2,95m×1,90m×1,85m
Weight	4300kg
Payload	360kg
Thrusters	7×THR.Y300
MECHANICAL CAPACITY AND INTERFACES
Free space inside ROV for utility equipment	Open area of approx. 200 L through the entire ROV, right in front of centre of gravity.
Manipulators	5 axis manipulator,7 axis manipulator(Switch control)
HYDRAULIC CAPACITY AND INTERFACES
Valve Pack No.1	10x Bi-directional Valves with proportional flow control, each with max flow 5 L/min.
Valve Pack No.2	10x Bi-directional Valves with proportional flow control, each with max flow 5 L/min.
TELEMETRY/SENSOR CAPACITY AND INTERFACES
Power Distribution	All power supplies allocated to external users, such as lights, cameras and sensors, can be switched on / off from the upper computer with a total available power of 10A @ 220VAC. Available power supply: 220VAC, 24VDC, others can be provided as required.
Sensor Interface	Customizable interface(including sonar,USBL,altimeter,gyro,etc)
CAMERA AND LIGHTS
Camera Interface	8 composite video camera inputs. Connector type: VVLJXT series
Pan/Tilt	Double axis pan tilt *2
Light Interface	Capacity for nine dimmable lights, maximum total load of 1500W. Connector type: VVLJXT series
PERFORMANCE
Bollard Pull FWD/AFT	700kg
Bollard Pull LATERAL	600kg
Bollard Pull Vertical UP	600kg
Bollard Pull Vertical DOWN	650kg
Speed FWD	1,6 m/s
Speed LATERAL	0,8 m/s
PILOT INTERFACE
• Two identical pilot chairs, where all necessary controls for operating the ROV, TMS and PDU are integrated in the control station. • 2 off Touch Controller • 2 off 49” Video monitors • 6 off 22” Monitors
PDU
Description	One separate cabinets. One containing breakers, contactors, overload relays,signal transformers,and serving as a termination and isolation point for all high voltage connections.
Input	3 phase 400-420-440VAC, 50Hz
Output	• ROV HPU 220 KVA, 3000-3150-3300-3450VAC • ROV Instrument 16 KVA, 3000-3150-3300VAC • TMS HPU 30 KVA, 3000-3150-3300V-3450VAC • TMS Instrument 16 KVA, 3000-3150-3300VAC

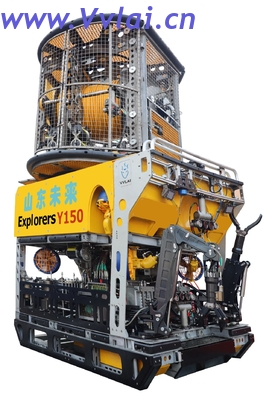

VD20 TMS
General
Max. Width	2450mm
Min. Width	2150mm
Height	2300mm
Depth rating	3000m
SWL liftpoint (LARS interface)	12000kg
SWL latch (ROV interface)	10000kg
Tether capacity	500m,tether diameter≤40mm
Min. Tether Bending Diameter	800mm
Weight in air excl. tether	2850kg
Weight submerged excl. tether	2200kg
Hydraulic Fluid	Tellus S3M22
Power Supply	3kV/3ph/50Hz
Total Power	17 kW
ELECTRICAL INTERFACE
Capacity for 2x cameras
Capacity for3x dimmable lights

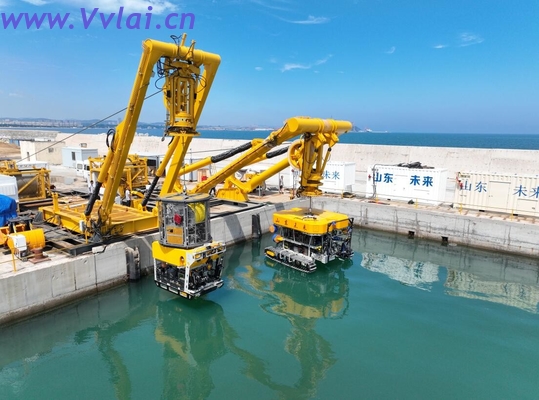

10T LARS Lifting system
A-frame	1. Rated working load: 10T 2. Dynamic load coefficient: 1.7 3. Outboard working distance: ≥ 4100mm 4. Span: ≥ 3m 5. Luffing time: 120s 6. Side sway buffer angle: ± 8 ° (outboard limit position) 7. Net height of guide joint bottom: 6124mm 8. Shock absorber rotation angle: 270 ° 9. Shock absorber rotation speed: 0.7r/min
Winch	1. Maximum working load: 150kN 2. Speed and load: 30m/min/100kN 3. Rope capacity: Ф 36.5mm/3300m 4. Braking force: 170kN
