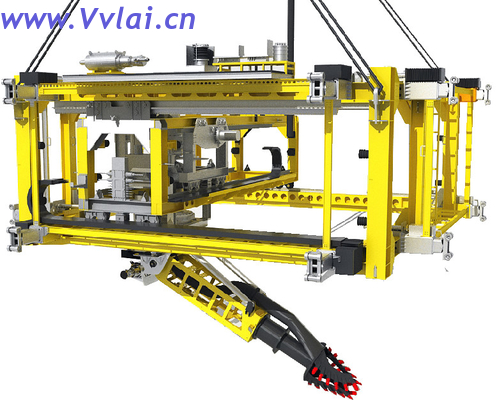

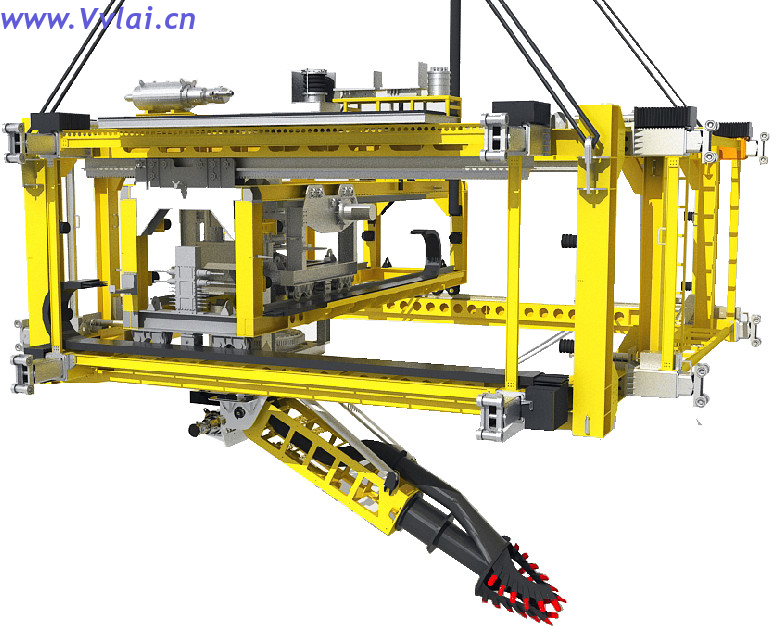

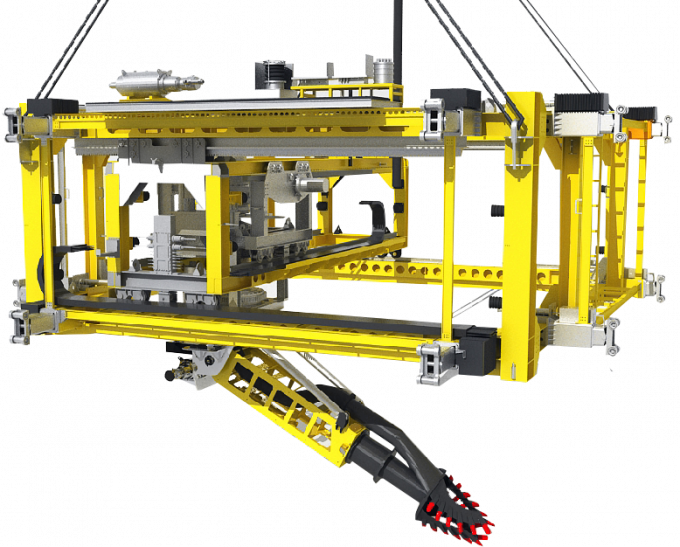

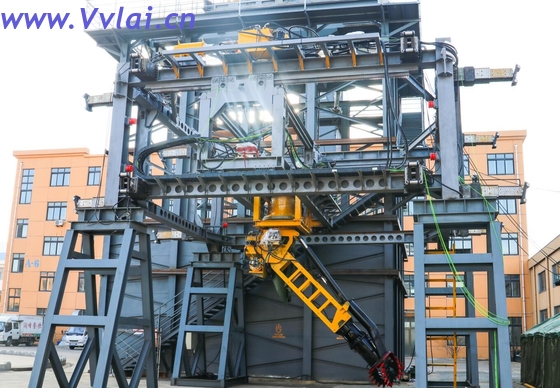

Gantry Cutter Suction ROV

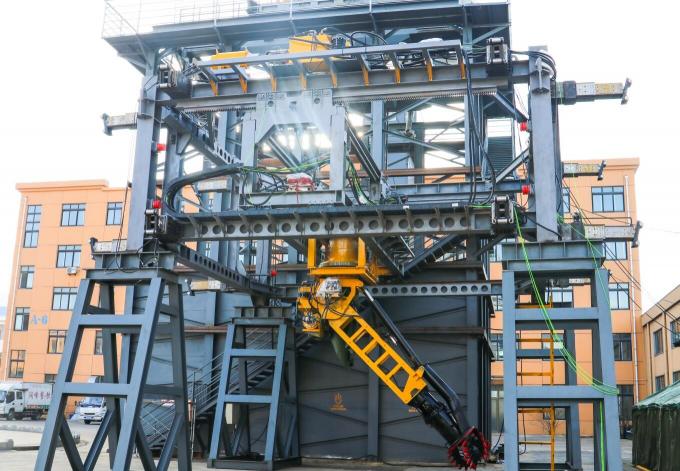

The construction of large bridge across sea and deep water is an important basic project in the construction of intelligent port and ocean engineering in China. To meet the strategic needs of marine powers, break through the underwater excavation environment and situation in the construction of large deep-water caisson silt removal, such as "unclear" and "unsustainable" excavation of well shape and poor soil adaptability, blind spots, etc technical problems, using the advantages of silt removal technology of winch-suction robot, creatively design a set of "4-axis 5-action" gantry winch-suction robot, "3-axis 4-action"Integrated silt removal solution consisting of a crawler-type robot and a centralized lifting platform for auxiliary operations.The key technology of Visualization of Digital Mining, Strong Mixing and Strong Suction,and the development of visualized mud cutter suction pumping system for Digital Excavation have obvious efficiency and accuracy in the silt removal of deep-water pier caisson.
ROV size and weight:9500*9500*6600mm(not extended size),extended size :11500*11500*8500mm,45000kg.
Material structure:All structural parts, supporting wheel and driving wheel of the body are corrosion-resistant and can be used in seawater and fresh water;
Power system:Hydraulic system. Power 30KW, star discharge 71ml / R, rated working pressure 25MPa (two sets)
Inspection system:1 set of HD cameras,
Lighting system:1 set of 50w led lights,
Cable control system:Design tension more than 3000kg, design speed of cable retraction and release, 0-5m / min, length of cable winding: 150m, diameter of drum :1050mm,
Operating ability:Flow bar: 350m3/ h, lift: 60m, working depth: 130m, blowdown diameter, 200mm, particle diameter through hole: 80mm;
Hydraulic twist suction head:Rotating speed: 0-40r/min,rotating torque: 5000NM, passing particle diameter: 80mm, driving mode: hydraulic motor;
Deck unit:Embedded host, I5 processor, 1t hard disk, 128GB SSD, 19 inch high brightness LCD, multi screen control center, industrial level control handle
Platform size:12000x9200x4825mm, weight, 68T, lifting weight :40t + 40t, lifting speed: 3m / min;
The first domestic intelligent robot to participate in bridge construction project "changtai Yangtze river bridge",which is the priority project of "13th Five Year Plan"
