Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

Product Details:

Place of Origin:Weihai
Brand Name:VVLAI
Certification:CE/FCC/ISO9001
Model Number:VVL-XF-QC

Payment & Shipping Terms:

Minimum Order Quantity:1 set
Price:Negotiable
Packaging Details:Military green case
Delivery Time:15~30days upon receipt of 100% T/T in advance
Payment Terms:100% T/T in advance
Supply Ability:10 sets per month
Description

Underwater Panoramic Suspension ROV

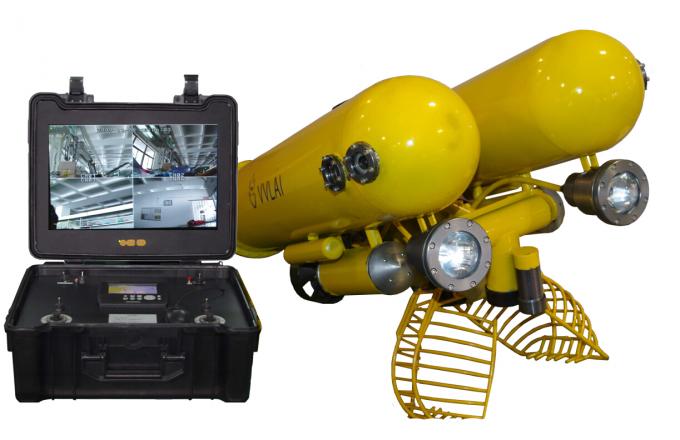

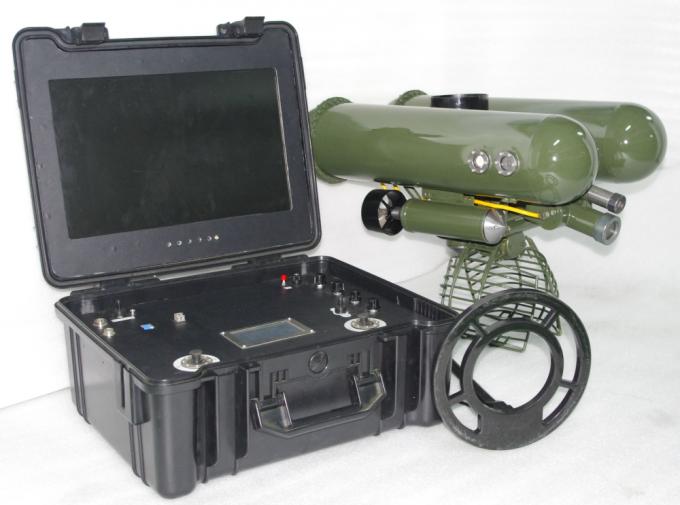

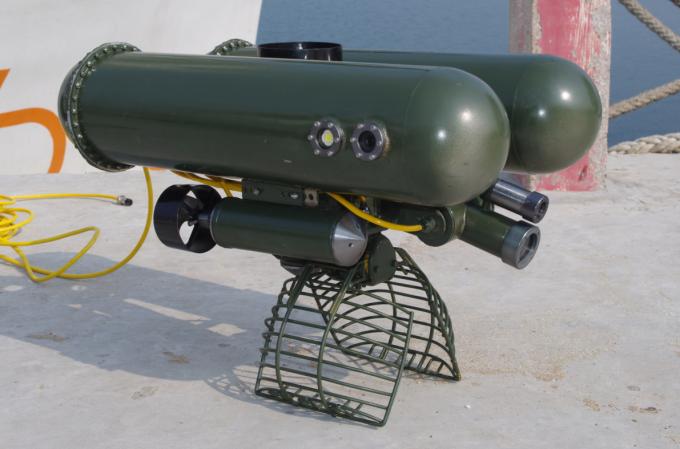

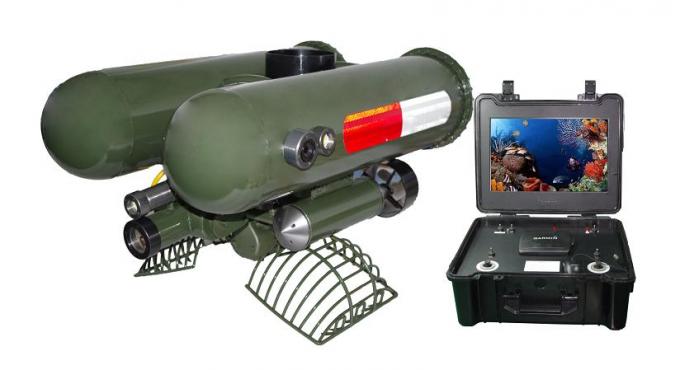

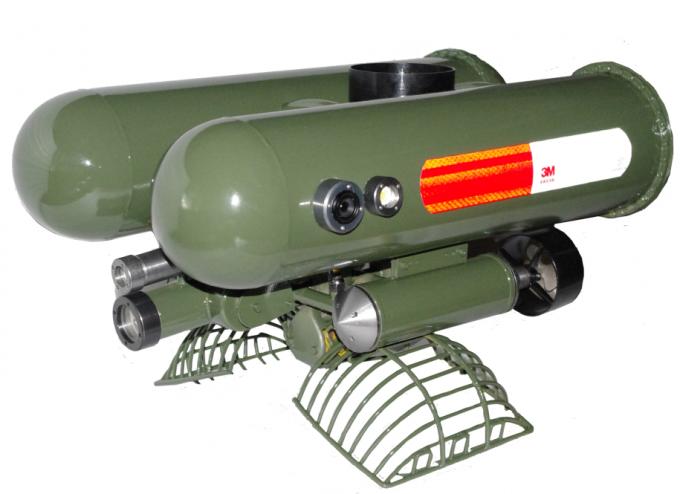

1.Product Image

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

2.Presention

The underwater suspension manipulator is specialized in areas of underwater searching and salvage,fire rescue,criminal investigation,rescue,salvage those drowning victom,physical evidence,etc.Thrusters can be used to control the manipulator arm forward,backward,turning around and grasp successfully.The monitor can be used to inspect the underwater circumstances and opening and closing of manipulator arm can be controlled to finish the salvage and rescue which ensure the safety of the trapped people and rescue workers to great extent. It is equipped with 4*50W underwater LED lights which has the perfect image and video effect.Easy operation accelerates the rescue speed of the police and reduces the risk of the police.It has been widely used in substratum police stations,110 cruiser,rescue team,water police,patrol boat,marine departments,etc.



3.Configuration:

1.ROV: Own patent,panoramic imaging design,four sets of 1000lines HD camera from forward,backward,left and right can accomplish the 360 degree horizontal panoramic inspection.The front camera adopts the latest patent technology which can be vertically rotary 200 degree and horizontal 360 degree rotary inspection,which is unprecedented.
2.Console:Double-screen display,19inch high light monitor,four images display,the data using 4inch touch monitor showing parameters of the ROV.
3.Manipulator arm:Stainless steel manipulator arm,its opening and closing are controlled by the console,strong magnet can absorb the iron objects and so on.
4.Video:1000G,picture and video can be stored at the same time,USB interface,easy to export.
5.Body:Anti-crash stainless steel ROV body,316L stainless steel structure,suitable for ocean,lake,pool,river,etc.
6.Camera:can take photos
7.Cable:100M,special for underwater use,can bear weight 100kg,diving depth 100m(the length of the cable can be tailored to customer’s requirement)
8.Illumination: 4*50W underwater high perspective red LED light,light tracks camera technology
9.Motor:3 thrusters with controller speed,Max pushing force for one thruster is 20kg,can control the direction of forward,backward,left.,right,up and down.
10.Electric interface:4inch monitor for the state of the ROV,mainly display the direction of the ROV,the real depth,specified depth,GPS location,auto depth sailing angle,underwater temperature,detect alarm.
11.Compass:Double compasses display,can show the location of the console and the underwater ROV,which makes the operator can confirm the sailing angular deviation and is very useful.
12.GPS: can show the present GPS location,record 1000 GPS coordinate point location and have the seeking functions in 0.5-100KM radius.
13.Sailing:Speed0-2m/s,depth sensor,auto depth sailing,auto depth suspension,auto direction sailing
14.Consumption:Max AC-220V 1200W
15.Power supply:AC220V-2000W electrical generator
16.Visible distance:Efficient observation distance for one-class water is above 5m
17.Specification:850*600*500mm
18.Can observe 24hours a day
19.Working temperature:-20-60℃
20.Pack:Green military case



4.Compass and GPS Introduction

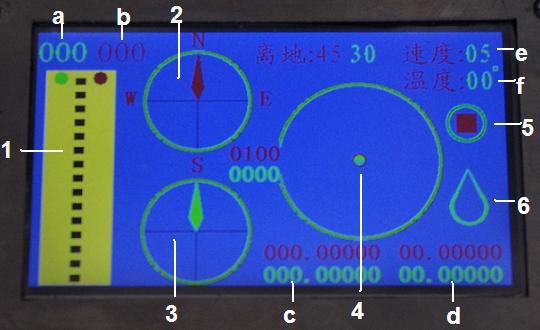

I Compass Instruction

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

1-Depth Adjuster

a - actual depth

b - assign depth

2- Underwater compass: to show direction of ROV

3- Above water compass: to show direction Control case

4- GPS

c - current location

d - searching location

e- ROV speed

f- Water temperature

5- Metal detector

6- Water ingress alarm

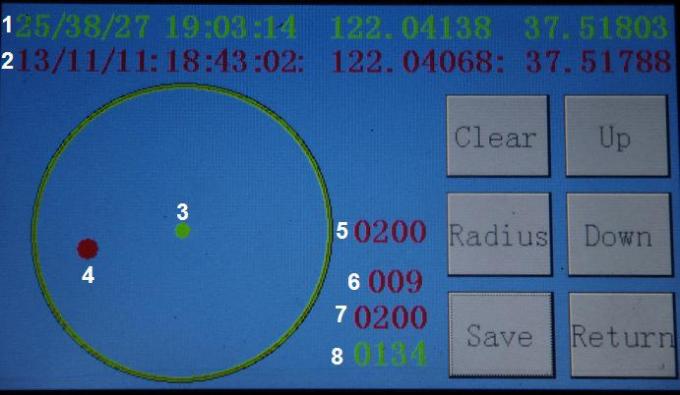

II. GPS Instruction

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

1-Current Position

2-Record Position

3-Current Position(Green point)

4-Searching Position(Red point)

5-Searching Radius

6-Record Number

7-Displaying Radius

8-Actual Distance



5.Options Picture:

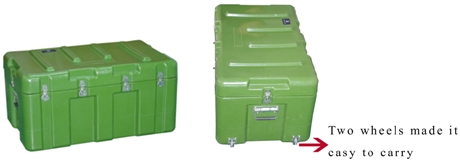

Military green case

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

Garmin Charter/GPS/Sonar Multifunction

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

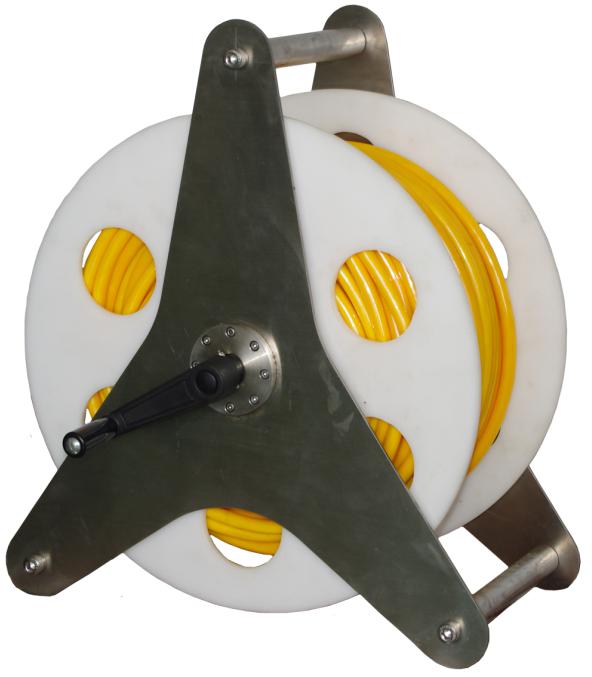

Reel with slip ring or Cable roll

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC

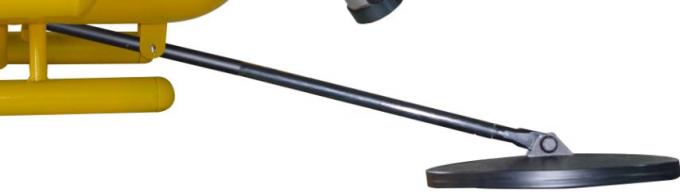

Metal detector

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC





6.Company introduction

Established in 2005, Weihai Future Robot Co.Ltd is a manufacturer specializes in the design and production of underwater robot. We are located in Weihai with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. After about 10 years’ development and exploration ,we have successfully produced underwater thruster robot,360 degree rotary robot, underwater video camera, suspended robot, underwater walking robot, pipe inspection robot, pipeline working robot, underwater panoramic suspension manipulator arm, underwater electric cutting machines and other products, enjoying the reputation and compliment from all over the world. We always adhere to the business philosophy of“pursuit excellencewith Future”, the principle of “trustful quality, gratitude heart, creating Future’ brand”, the spirit of creativity and exploration”, The company has strong R & D strength, high-quality professionals and advanced management mode and we will confront all the challenge and test in the market. Our company promise:Business principle: honesty-based, credit-first, quality-oriented.Service philosophy: punctual delivery, reasonable price, honest attitude.In the new century, we will work hard and closely cooperated with customers to create bright future of Future Robot. Welcome new and old customers to call us for more detail.



7. Contact info

Weihai Future Robot Co., Ltd.

Add:213 Torch Road, High-tech Development Zone, Weihai City, China

Tel:86-631-5326187

Fax:86-631-5326187

Skype:liyanghong512

Website: www.vvlai.cn

8. Site picture

Underwater Panoramic Suspension ROV,Underwater Suspension Manipulator VVL-XF-QC
