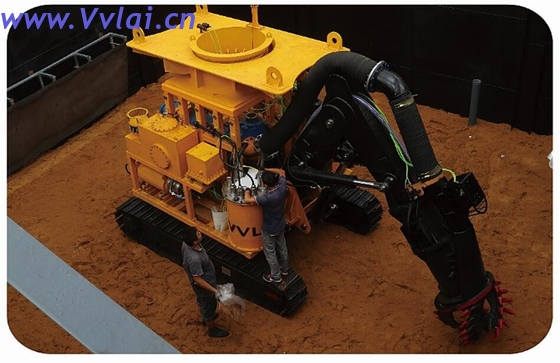

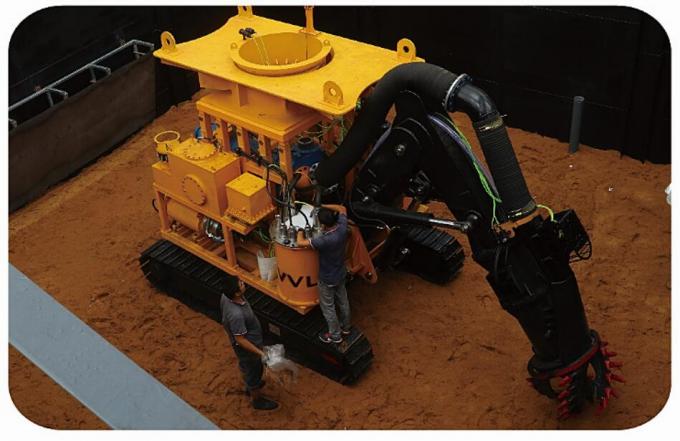

Crawler Cutter-suction ROV
The construction of large bridge across sea and deep water is an important basic project in the construction of intelligent port and ocean engineering in China. To meet the strategic needs of marine powers, break through the underwater excavation environment and situation in the construction of large deep-water caisson silt removal, such as "unclear" and "unsustainable" excavation of well shape and poor soil adaptability, blind spots, etc technical problems, using the advantages of silt removal technology of winch-suction robot, creatively design a set of "4-axis 5-action" gantry winch-suction robot, "3-axis 4-action"Integrated silt removal solution consisting of a crawler-type robot and a centralized lifting platform for auxiliary operations.The key technology of Visualization of Digital Mining, Strong Mixing and Strong Suction,and the development of visualized mud cutter suction pumping system for Digital Excavation have obvious efficiency and accuracy in the silt removal of deep-water pier caisson.
> Application scenarios

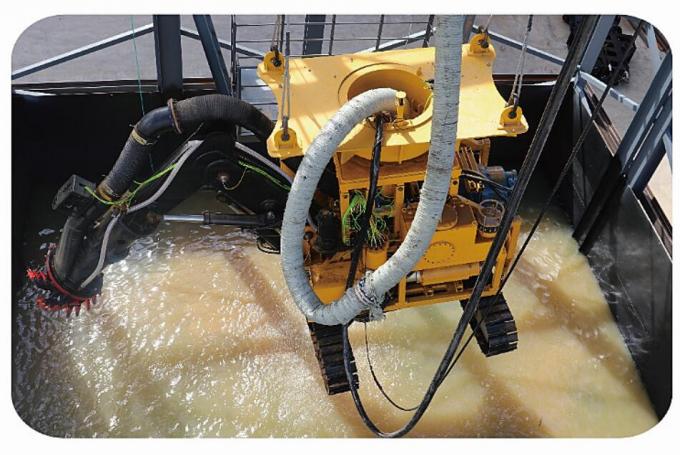

Deep well reaming suction construction of Changtai river crossing passage
＞ Application field
Dredging of pier excavation, dredging of marine engineering, dredging of large caisson, port engineering and other fields.

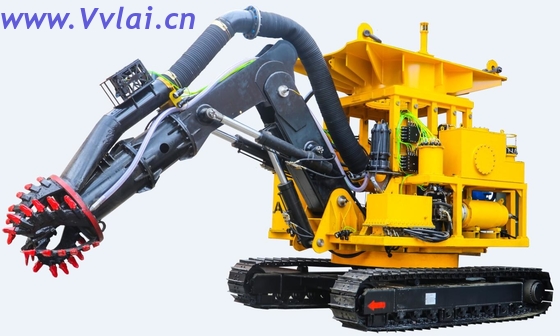

ROV weight and size:5350*2650*3500mm(Mainpulator no extended size)
Mainpulator extended length 7220mm,16500kg.
Material Structure:All structural parts of the body, track, roller and driving wheel, corrosion-resistant, can be used in seawater and fresh water.
Power system::The power of the hydraulic system is 30kW, the displacement is 71ml / R, and the rated working pressure is 25MPa (two sets);
Inspection system:Eight groups of HD cameras, two groups of suction heads, two groups in front, one group in the top, one group in the left and one group in the back,
Lighting system:8 groups of 50W LED lamps;
Cable control system:The design tension more than 3000kg, the design speed of the cable is 0-5m / min, the length of the winding cable is 150m, and the diameter of the drum is 1050mm;
Crawler chassis:Working water depth, 150m, traveling speed: 0-6m / min, traveling moment, 48000n. M, climbing capacity 20 °;
Working ability:Flow: 350m '/ h, lift: 60m, working depth: 130m, blowdown diameter: 200mm, through-hole particles, 80mm, pump height: 65m (on water)
Hydraulic twist suction head: rotating speed: 0-40r / min, rotating torque: 5000NM, through particle diameter: 80mm, driving mode: hydraulic
Deck unit:Embedded host, 15 processor, 1t hard disk, 128GB SSD, 19 inch high shell LCD, multi screen control center, industrial level control handle
Platform size:12000x920x10500mm, heavy day: 58T, lifting heavy halo: 16t + 16t, lifting speed: 9m.
